CNC Press Brakes

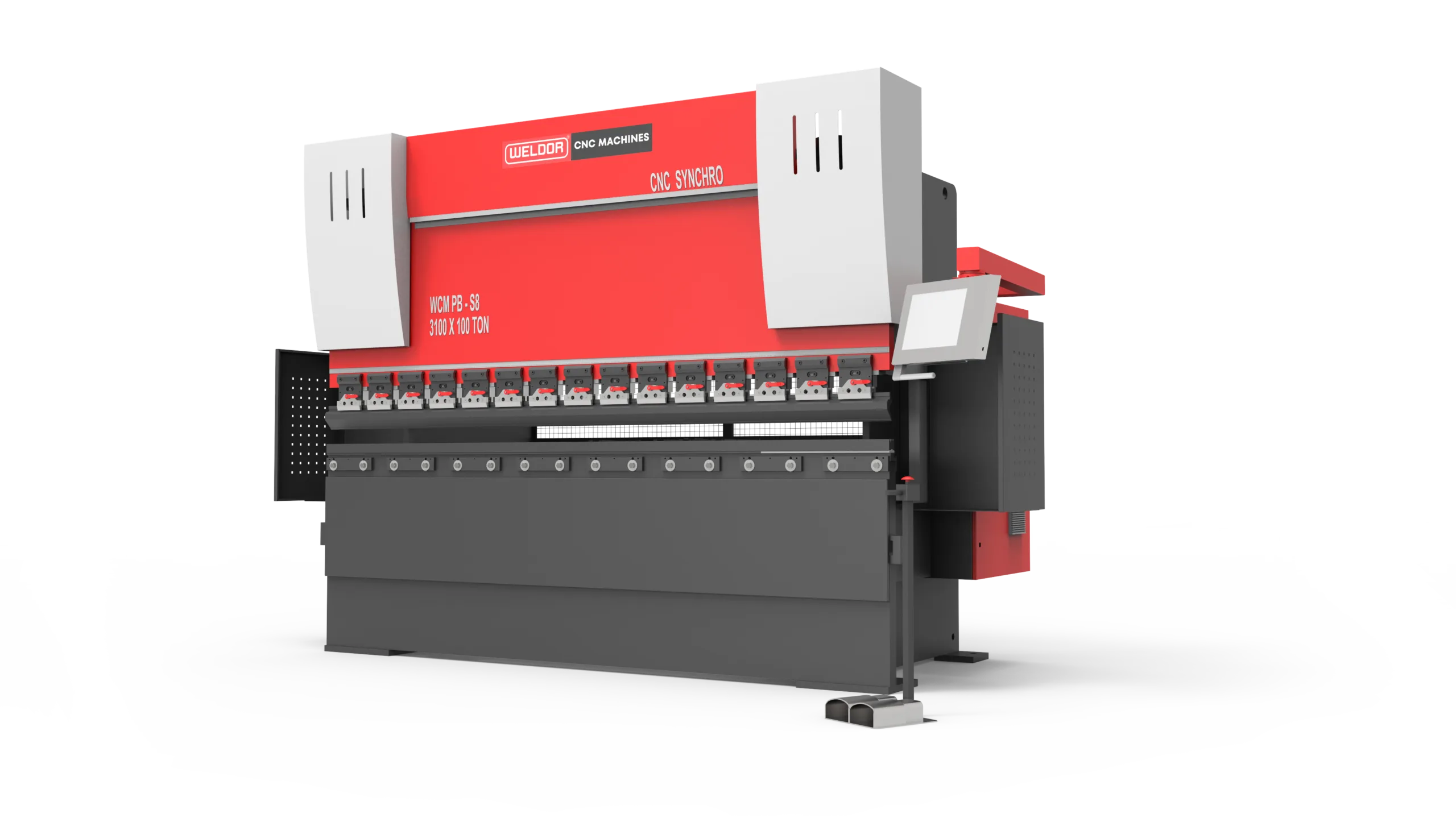

A versatile workhorse, the S Series offers reliable CNC hydraulic performance across a wide tonnage range. With multiple backgauge axis options and rugged construction, it’s designed for flexibility in batch and custom fabrication.

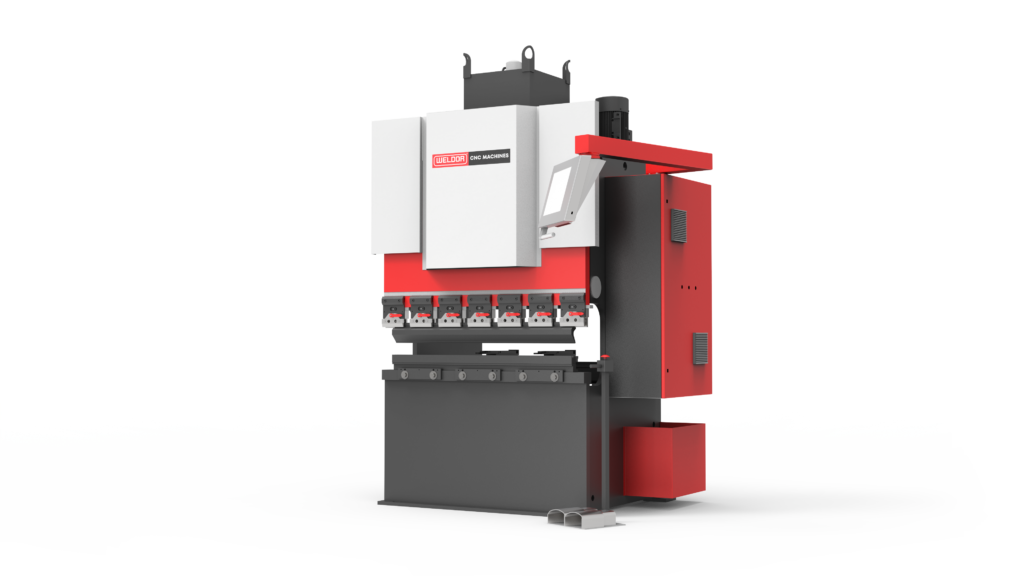

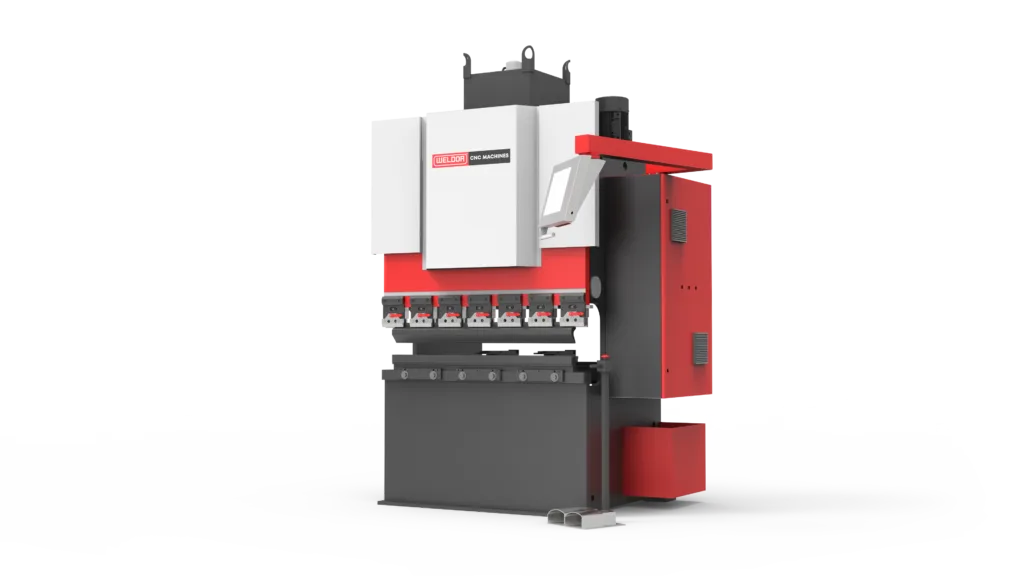

INTRODUCING THE N-SERIES

The S Series is Weldor’s flagship range of CNC Hydraulic Press Brakes, engineered to deliver consistent bending accuracy, operational reliability, and scalability across a wide range of industrial applications. Designed with a rugged mono-block frame, precisionhoned hydraulic cylinders, and multiple axis control options, it’s the ideal solution for both batch production and custom fabrication needs.

Standardized
Models

Fast Delivery

Customizable

Economical

Ranges: 40 Ton -
2000 Ton

Multiple Backgauge Axis

Available with trusted controller options like Cybelec CybTouch or VisiTouch, the S Series simplifies even
complex bending tasks through intuitive programming, angle correction, and visual step guidance.

This combination of rugged hardware and digital intelligence ensures faster setups, fewer reworks, and
increased operator productivity.

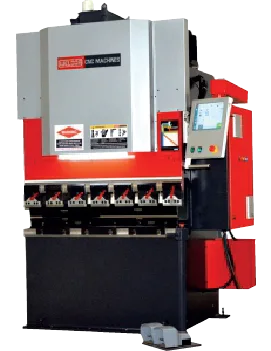

Made For Everyday excellence

The S-Series CNC Hydraulic Press Brake is designed to deliver dependable bending performance with a focus on long-term value and cost-efficiency. Powered by a high-efficiency induction motor and controlled via advanced
CNC technology, the S-Series offers the perfect balance of precision, durability, and affordability for a wide range of fabrication needs.

ADVANTAGES OF THE
STRENGTH. STABILITY. VALUE.

The S-Series is the ideal choice for manufacturers looking for dependable bending performance, long-term value, and ease of ownership — all while keeping operaonal and inial investment costs under control.

Engineered for medium to heavy-duty operations, the S-Series combines a robust hydraulic system with a time-tested induction drive, ensuring stable performance and low operational costs. Whether in job shops or production lines, the S-Series is the smart choice for manufacturers looking to optimize their workflow without compromising on reliability or accuracy.

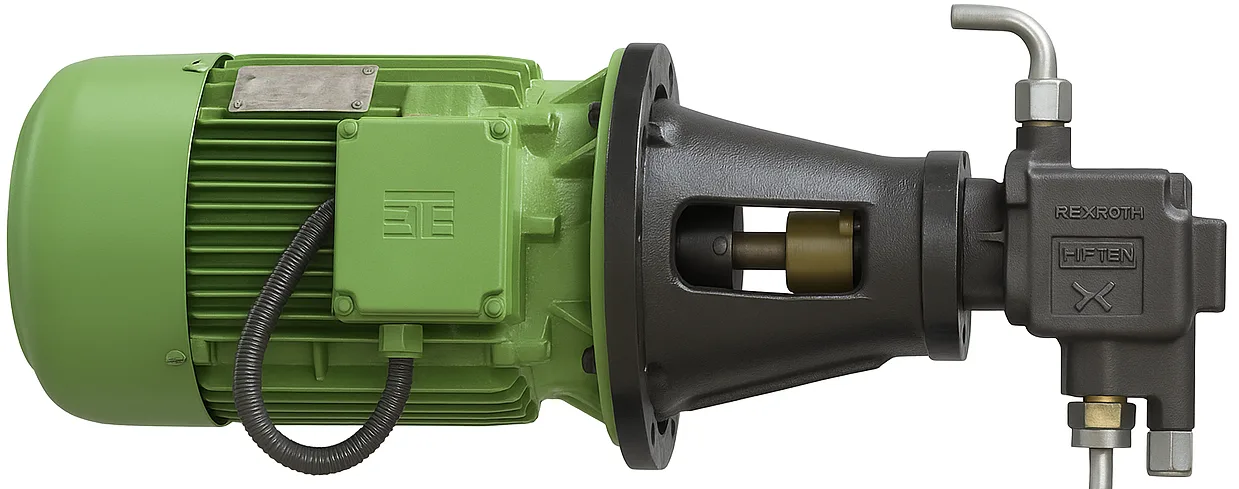

Robust Induction
Motor Drive

Proven 3-phase induction motor delivers dependable performance with minimal downtime.

Powerful Hydraulic Bending System

Delivers consistent and precise force output, even in heavy-duty applications, thanks to a closed-loop servo valve-controlled hydraulic power pack.

Economical
Operation

Cost-effective solution with low energy consumption and high durability — ideal for budget-conscious production.

Low Maintenance
Requirements

Fewer electronic components and rugged mechanical design reduce maintenance time and costs.

Stable Performance
Under Load

Reliable operation in demanding production environments, from batch jobs to custom fabrication.

Optimized for General
Industrial Use

A versatile, durable press brake that meets the core demands of modern manufacturing with a focus on long-term ROI.

Take a 360° Tour

Great Engineering Made
Smart And Productive for You

Advantages Of s-Series

The S-Series represents the trusted standard in CNC Hydraulic Press Brakes, combining time-tested Induction Motor technology with a robust hydraulic system. Built for reliable performance in demanding environments, this machine delivers:

Great Engineering Made
Accurate for You

TECHNICAL
SPECIFICATIONS

The S Series is available in a wide range of tonnages, bed lengths, and axis configurations to meet diverse production needs. From stroke length and throat depth to backgauge travel and motor capacity, every specification is engineered for optimal precision, structural rigidity, and long-term reliability

Model	WCMPB	S1	S2	S3	S4	S5	S6	S7	S8	S9
Tonnage	Ton	40	50	65	65	80	80	100	100	100
Bending Length × Thx.	mm	1500 × 3.15	2050 × 3	2050 × 4	2500 × 3	2500 × 4	3100 × 3	2500 × 5	3100 × 4	4000 × 3
Distance Between Housing	mm	1050	1550	1550	2050	2050	2550	2050	2550	3400
Y Rapid Speed	mm/sec	100	100	100	100	100	100	100	100	100
Y Working Speed	mm/sec	8	8	8	8	10	10	10	10	10
Y Return Speed	mm/sec	80	80	80	80	60	60	60	60	60
Day Light	mm	375	375	375	375	375	375	375	375	375
Table Width	mm	90	90	90	90	60	60	60	60	60
Table Height	mm	800	800	800	800	900	900	900	900	900
Stroke	mm	150	150	150	150	150	150	150	150	150
Throat Depth	mm	300	300	300	300	300	300	300	300	300
Back Gauge Finger Block	nos.	2	2	2	2	2	2	2	2	2
Travel In X Axis	mm	500	500	500	500	600	600	600	600	600
Travel In R Axis	mm +/-	100	100	100	100	100	100	100	100	100
Motor Power	hp/kW	5 / 3.7	7.5 / 5.5	7.5 / 5	7.5 / 5	10 / 7.5	10 / 7.5	10 / 7.5	10 / 7.5	10 / 7.5
Oil Tank Capacity	ltr	300	300	300	300	450	450	450	450	450
Length	mm	1750	2500	2500	3000	3100	3500	3000	3500	4500
Width	mm	1200	1300	1300	1300	1350	1400	1500	1500	1500
Height	mm	2350	2400	2400	2400	2450	2450	2600	2450	2600

Model	WCMPB	S10	S11	S12	S13	S14	S15	S16	S17	S18
Tonnage	Ton	130	130	130	160	160	160	200	200	200
Bending Length X Thx.	mm	2500 × 6	3100 × 5	4000 × 4	2500 × 8	3100 × 6	4000 × 5	2500 × 10	3100 × 8	4000 × 6
Distance Between Housing	mm	2050	2550	3400	2050	2550	3400	2050	2550	3400
Y Rapid Speed	mm/sec	100	100	100	100	100	100	70	70	70
Y Working Speed	mm/sec	10	10	10	8	8	8	8	8	8
Y Return Speed	mm/sec	60	60	60	70	70	60	50	50	50
Day Light	mm	375	375	375	400	400	400	475	475	475
Table Width	mm	90	90	90	90	90	90	90	90	90
Table Height	mm	965	965	965	965	965	965	965	965	965
Stroke	mm	175	150	175	175	175	175	250	225	225
Throat Depth	mm	300	300	300	300	300	300	300	300	300
Back Gauge Finger Block	nos.	2	2	2	2	2	2	2	2	2
Travel In X Axis	mm	600	600	600	600	600	600	600	600	600
Travel In R Axis	mm(+/-)	100	100	100	100	100	100	100	100	100
Motor Power	hp/kw	12.5/9	12/9	12.5/9	15/11.2	15/11.2	15/11.2	20/15	20/15	20/15
Oil Tank Capacity	ltr	450	500	450	450	500	500	450	500	550
Length (L)	mm	3100	3700	4500	3150	3500	4500	3150	3500	4500
Width (W)	mm	1600	1600	1600	1650	1650	1650	1800	1800	1800
Height (H)	mm	2750	2600	2750	2800	2700	2700	3050	2700	2700

Model	WCMPB	S19	S20	S21	S22	S23	S24	S25	S26
Tonnage	Ton	200	200	250	250	250	250	325	325
Bending Length X Thx.	mm	5000 X 5	6000 X 4	3100 X 10	4000 X 8	5000 X 6	6000 X 5	3100 X 13	4000 X 10
Distance Between Housing	mm	4000	5000	2550	3400	4000	5000	2550	3400
Y Rapid Speed	mm/sec	70	70	70	70	70	70	60	60
Y Working Speed	mm/sec	8	8	8	8	8	8	8	8
Y Return Speed	mm/sec	50	50	50	50	50	50	50	50
Day Light	mm	475	475	500	500	500	500	500	500
Table Width	mm	90	90	90	120	120	120	150	150
Table Height	mm	965	965	965	965	965	965	965	1000
Stroke	mm	225	225	225	250	300	300	250	250
Throat Depth	mm	300	300	300	300	300	300	300	300
Back Gauge Finger Block	nos.	2	4	2	3	3	4	2	3
Travel In X Axis	mm	600	600	700	700	700	700	700	700
Travel In R Axis	mm(+/-)	100	100	120	120	120	120	120	120
Motor Power	hp/kw	20/15	20/15	25/18.75	25/18.75	25/18.75	25/18.75	40/30	40/30
Oil Tank Capacity	ltr	600	600	600	600	600	600	650	650
Length (L)	mm	5500	6500	3500	4500	5500	6500	3800	4800
Width (W)	mm	1800	1800	1850	1850	1850	1850	1850	1850
Height (H)	mm	2700	2700	2800	2800	2800	2800	2900	2900

Model	WCMPB	S27	S28	S29	S30	S31	S32	S33	S34
Tonnage	Ton	325	325	425	425	425	425	600	600
Bending Length X Thx.	mm	5000 X 8	6000 X 6	3100 X 17.5	4000 X 13	5000 X 10	6000 X 8	4000 X 18	5000 X 15
Distance Between Housing	mm	4000	5000	2550	3400	4000	5000	3400	4000
Y Rapid Speed	mm/sec	60	60	50	50	50	50	50	50
Y Working Speed	mm/sec	8	8	7	7	7	7	6	6
Y Return Speed	mm/sec	50	50	50	50	50	50	40	40
Day Light	mm	500	500	550	550	550	550	625	625
Table Width	mm	150	150	200	200	200	200	250	250
Table Height	mm	1000	1000	1100	1100	1100	1100	1200	1200
Stroke	mm	250	250	300	300	300	300	325	325
Throat Depth	mm	300	300	325	325	325	325	325	325
Back Gauge Finger Block	nos.	3	3	4	4	3	4	3	3
Travel In X Axis	mm	700	700	700	700	700	700	700	700
Travel In R Axis	mm(+/-)	120	120	120	120	120	120	120	120
Motor Power	hp/kw	40 / 30	40 / 30	50/37.5	50/37.5	50/37.5	50/37.5	60/45	60/45
Oil Tank Capacity	ltr	650	650	700	700	700	700	800	800
Length (L)	mm	5800	6800	3850	4850	5550	6850	4900	5900
Width (W)	mm	1850	1850	2100	2100	2100	2100	2300	2300
Height (H)	mm	2900	2900	3000	3000	3000	3000	3200	3200

Model	WCMPB	S35	S36	S37	S38	S39	S40
Tonnage	Ton	600	600	800	800	800	800
Bending Length X Thx.	mm	6000 X 12.5	8000 X 9 mm	5000 X 20	6000 X 16	8000 X 12.5	9100 X 10
Distance Between Housing	mm	5000	7000	4000	5000	7000	8000
Y Rapid Speed	mm/sec	50	50	50	50	50	50
Y Working Speed	mm/sec	6	6	5	5	5	5
Y Return Speed	mm/sec	40	40	40	40	40	40
Day Light	mm	625	625	625	625	625	625
Table Width	mm	250	250	250	250	250	250
Table Height	mm	1250	1250	1250	1250	1250	1250
Stroke	mm	325	325	325	325	325	325
Throat Depth	mm	325	325	325	325	325	325
Back Gauge Finger Block	nos.	4	4	4	4	4	4
Travel In X Axis	mm	700	700	700	700	700	700
Travel In R Axis	mm(+/-)	120	120	120	120	120	120
Motor Power	hp/kw	60/45	60/45	60/45	60/45	60/45	60/45
Oil Tank Capacity	ltr	800	800	1000	1000	1000	1000
Length (L)	mm	6900	9000	6000	7000	9000	10100
Width (W)	mm	2300	2300	2400	2400	2400	2400
Height (H)	mm	3200	3200	3400	3400	3400	3400

Common
Accessories

Weldor’s modular accessories enhance precision, safety, and speed—customized for your material, geometry, and workflow. Upgrade only what you need, exactly how you need it.

CONTROLLER
OPTIONS

Weldor offers a versatile range of advanced CNC controller options to suit every level of complexity and operator preference.

CROWNING
SYSTEMS

For Press Brakes up to 100 Ton capacity and 4000 mm bending length, Slip-Type Passive Crowning offers a simple and effective natural compensation method.

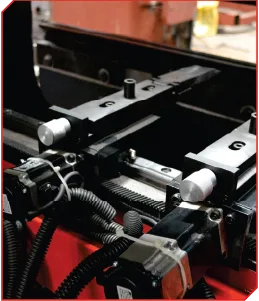

BACKGAUGE
AXIS OPTIONS

The high-precision backgauge combines speed and accuracy with AC servo drives and KK guides for rapid positioning.

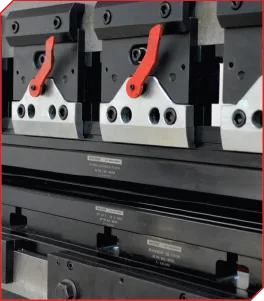

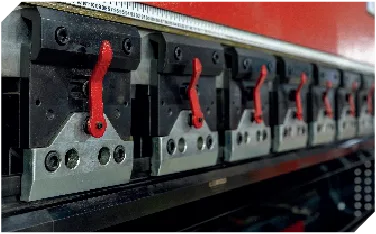

TOOL HOLDING
SYSTEMS

Automatic hydraulic tool alignment – upper and lower holders are hydraulically activated to align tools automatically

SAFETY
SYSTEMS

Safety interlocks in rear door and side guards provides simple operation without the need for programming by the machine operator.

Optional
Accessories

Fill in a few quick details and receive a tailored quote or product recommendation within 24 hours.

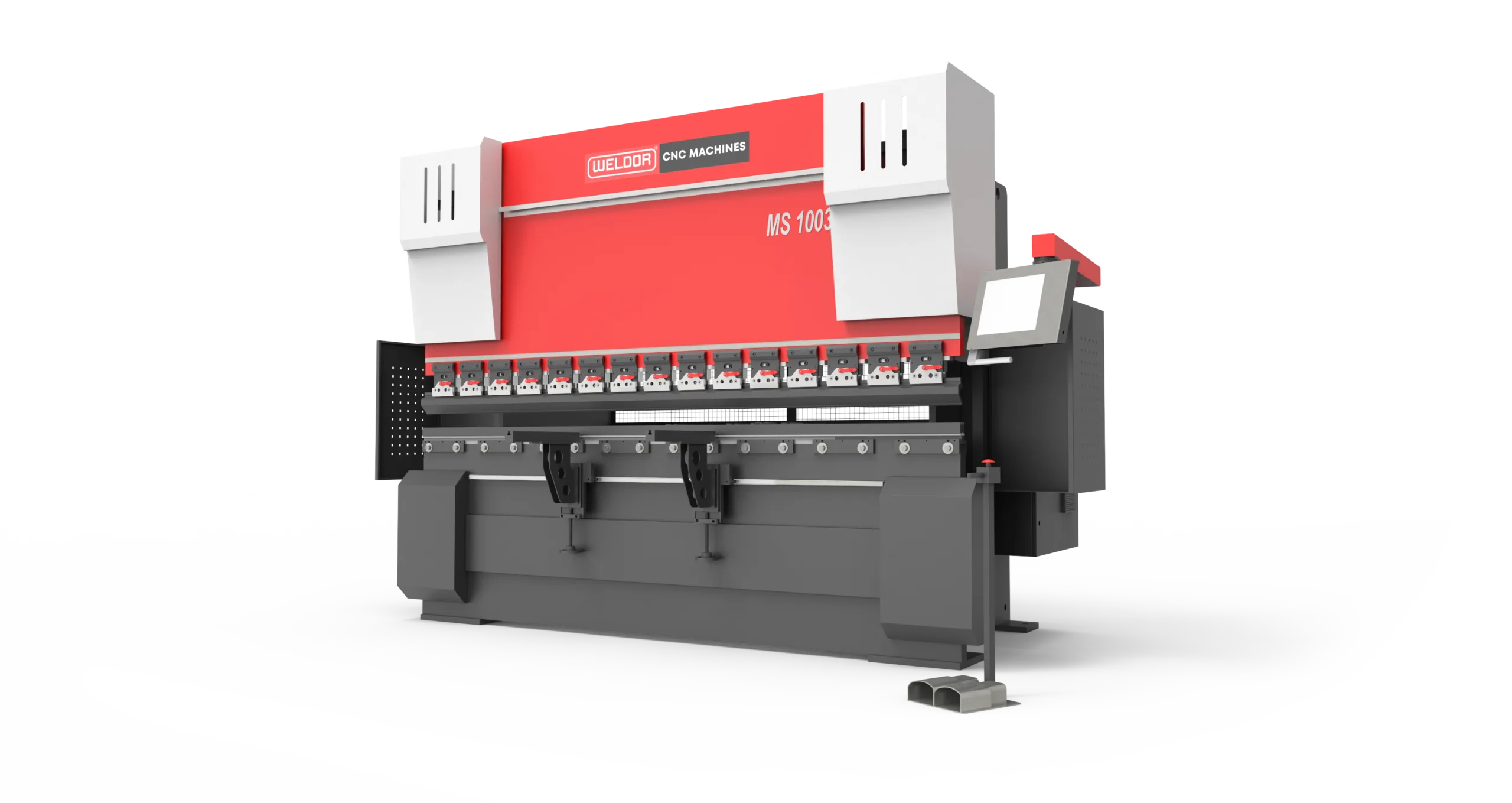

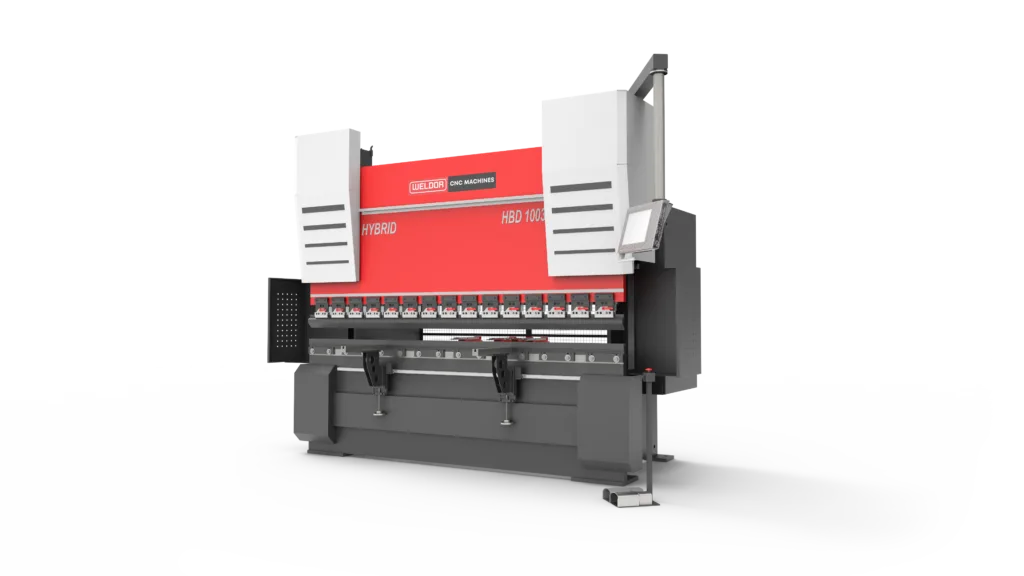

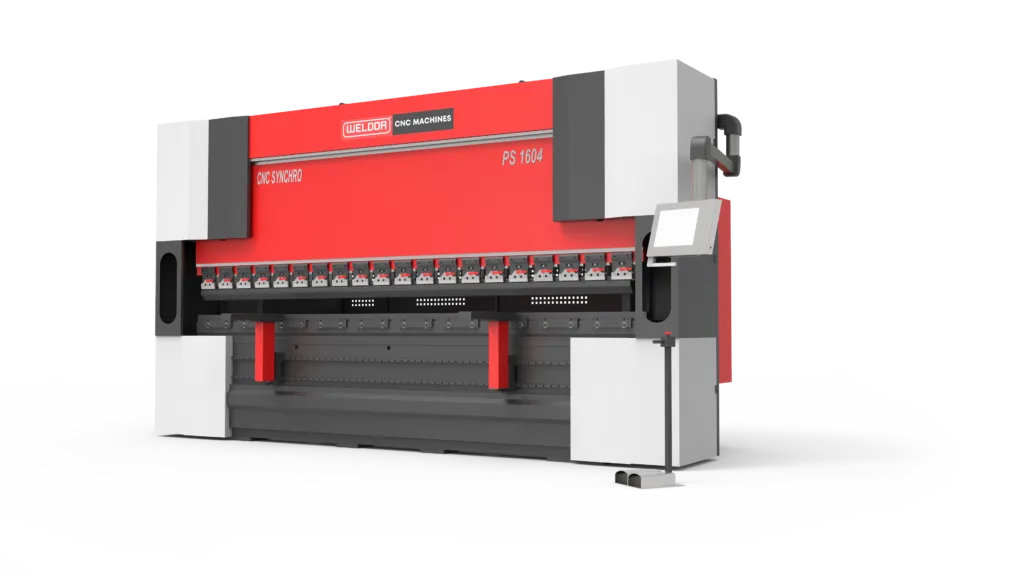

Explore other cnc press brakes
