CNC Press Brakes
CNC hybrid press brake
designed for precision-focused,
small-part bending.
- Power
- Control
- Efficiency
INTRODUCING THE The Premium Series
The Premium Series represents Weldor’s highest standard
in CNC hydraulic press brake technology – designed for
demanding applications where precision, speed, and
flexibility are non-negotiable.
With advanced controls, enhanced daylight and stroke,
and superior crowning systems, it delivers unmatched
performance for complex bending tasks and high-volume
production alike.
Highly Accurate
Faster Speeds
Heavier Structure

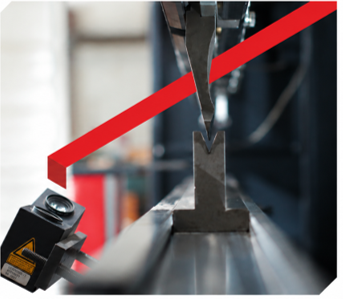

Laser Angle
Correction (Opt)
Hydraulic Punch Adaptors (Opt)
Main Motor Servo (Opt)
Larger Daylight & Stroke
Multiple Backgauge Axis Options
Smart Bending For
small parts - redefines
From aerospace to structural fabrication, the Premium Series adapts
seamlessly to diverse industry needs.
Its multi-axis backgauge options, intuitive CNC interface, and high-speed
hydraulic system ensure faster setups, accurate repeats, and smoother
workflows – making it the ideal choice for precision-driven production
environments.
PRECISION BUILT FOR GLOBAL STANDARDS
Engineered for industries where accuracy, speed, and reliability are non-negotiable, the
Premium Series Press Brakes represent the pinnacle of Indian manufacturing with global
competitiveness. Designed to meet and exceed the highest global standards in precision
press brake technology., this model is purpose-built for demanding applications across
Aerospace, Defense, Railways, and other high-precision sectors.
Equipped with a Hybrid Servo Drive System, this press brake ensures efficient, responsive control with
reduced heat and energy loss. Ideal for electronics, enclosures, and precision parts — it’s a small machine
with big capabilities
Up to
70% lower
power
consumption
Minimal
Hydraulic
oil
usage
Fast
Accurate
bending
cycles
Near
Silent
Operation for Shop
floor comfort
Take a 360° Tour
- Rotate
- Explore
- Experience
[machine_slider_rotate]
Great Engineering Made
Smart And Productive
for You
Advantages Of Premium Series
- Power
- Precision
- Efficiency
Engineered for industries where accuracy, speed, and reliability are non-negotiable, the
Premium Series Press Brakes represent the pinnacle of Indian manufacturing with global
competitiveness. Designed to meet and exceed the highest global standards in precision
press brake technology., this model is purpose-built for demanding applications across
Aerospace, Defense, Railways, and other high-precision sectors.
Optional Servo
Main Drive
for energy-efficient performance; standard configuration includes a robust IE3 Class Induction Motor.
Close-Loop Servo
Hydraulic System
with 3-block architecture
for consistent
pressure and
position control.
Frame Precisely
Machined
with bed and ram hand-scraped<br for optimal flatness and surface finish—ensuring maximum bending accuracy.
Induction Hardened
Cylinder Rods
for enhanced durability, wear resistance, and long-term reliability under high-pressure operations.
High-Precision
Linear Scales
with 1-micron accuracy for exceptional repeatability.
Aesthetic and Functional Guarding Design
enhancing both safety and machine appeal.
Quick-Change
Tool Adapters
with locking and anti-fall safety features.
Standard Laser
Safety System
with optional Motorized Height Adjustment for added automation from Fiessler Elektronik GmbH & Co. KG, Germany
All Safety Guards
Equipped
with Interlocks to ensure operator protection
Technical Specifications
Every Premium Series model is built with precision-calibrated
components and thoughtfully engineered dimensions to meet diverse
bending needs. From tonnage and bending length to stroke, daylight,
and motor power, the specifications reflect a perfect balance of
strength, speed, and structural efficiency
| Model | PS | 5020 | 8025 | 1003 | 1303 | 1603 | 2003 |
|---|---|---|---|---|---|---|---|
| Tonnage | Ton | 50 | 80 | 100 | 130 | 160 | 200 |
| Working Length | mm | 2050 x 3 | 2500 x 4 | 3100 x 4 | 3100 x 5 | 3100 x 6 | 3100 x 8 |
| Distance Between Housing | mm | 1550 | 2050 | 2550 | 2550 | 2550 | 2550 |
| Stroke | mm | 250 | 250 | 250 | 250 | 250 | 250 |
| Daylight | mm | 520 | 520 | 520 | 520 | 520 | 520 |
| Throat | mm | 400 | 400 | 400 | 400 | 400 | 400 |
| Table Width | mm | 60 | 60 | 60 | 90 | 90 | 90 |
| Table Height | mm | 850 | 900 | 950 | 965 | 965 | 965 |
| Approach Speed | mm/s | 200 | 200 | 200 | 200 | 170 | 160 |
| Pressing Speed | mm/s | 14 | 14 | 14 | 14 | 12 | 10 |
| Return Speed | mm/s | 170 | 170 | 170 | 170 | 130 | 120 |
| Power Consumption | kw/hp | 7.5 / 10 | 15 / 20 | 15 / 20 | 20 / 25 | 22 / 30 | 30 / 40 |
| Back Gauge Finger Block | nos. | 2 | 2 | 2 | 2 | 2 | 2 |
| X-Axis Travel | mm/s | 500 | 600 | 600 | 600 | 600 | 600 |
| R-Axis Travel | mm/s | 100 | 100 | 100 | 120 | 120 | 120 |
| Oil Tank | ltr. | 320 | 420 | 420 | 420 | 420 | 420 |
| Length | mm | 2950 | 3400 | 3850 | 3900 | 3900 | 4000 |
| Width | mm | 1650 | 1750 | 1750 | 1800 | 1800 | 1850 |
| Height | mm | 2750 | 2850 | 2850 | 2900 | 2950 | 3050 |
