CNC Press Brakes
CNC hybrid press brake
designed for precision-focused,
small-part bending.
- Power
- Control
- Efficiency
INTRODUCING THE HRD-SERIES
The HBD Series combines the best of servo-electric
and hydraulic technologies in a next-generation hybrid
press brake.
Designed for high-speed, energy-efficient
performance, it delivers exceptional bending
accuracy, faster cycle times, and dramatically lower
power consumption—making it the ideal solution for
forward-thinking, precision-driven fabrication
environments.
Hybrid
High
Speed
Better
Repeatability
70% Less Power Consumption
70% Smaller
Oil Tank
Noise Less operation
Multiple Backgauge Axis Options
Smart Bending For
small parts - redefines
The HBD Series combines the best of servo-electric
and hydraulic technologies in a next-generation hybrid
press brake.
DESIGNED FOR PRECISION.
BUILT FOR PERFORMANCE.
Designed for high-speed, energy-efficient performance, it delivers exceptional bending
accuracy, faster cycle times, and dramatically lower
power consumption—making it the ideal solution for forward-thinking, precision-driven fabrication environments.

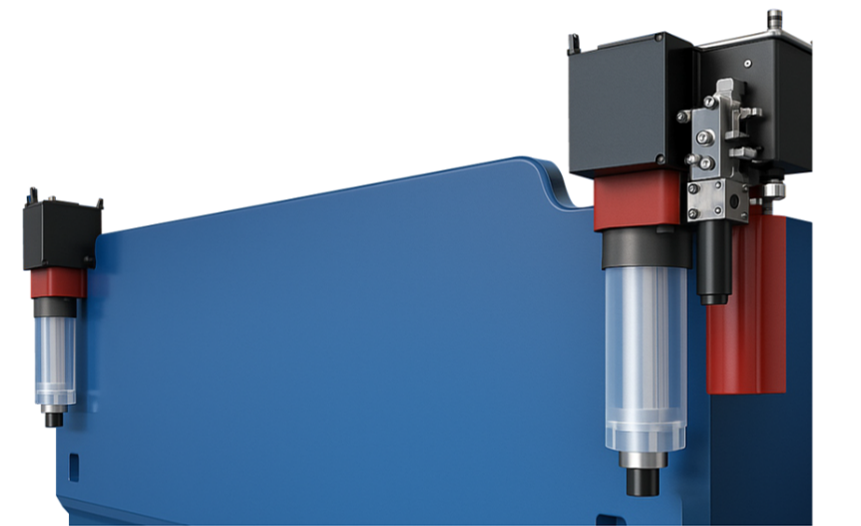

Redefining Bending Performance with Hybrid Precision Introducing our next-generation Hybrid Press Brake (Dual Servo) — a breakthrough in sheet metal forming technology that outpaces traditional hydraulic systems on every front. Designed for speed, precision, and sustainability, this press brake delivers
Up to
70% Lower
Power
Consumption
70% Smaller
Hydraulic
Oil
Requirement
Higher
Significantly
Bending
Speeds
Operation
Near-silent
For improved shop-floor comfort
Take a 360° Tour
- Rotate
- Explore
- Experience
Great Engineering Made
Accurate for You
Advantages Of HBD
- Power
- Precision
- Efficiency
The HBD Series redefines performance standards in press
brake technology by combining dual servo motor systems
with intelligent hybrid hydraulics. Engineered for
manufacturers who demand uncompromising accuracy
and energy-conscious solutions, the HBD Series offers:
Dual Servo Efficiency
that delivers high dynamic response and significant energy savings
Superior Bending Accuracy
through closed-loop control for consistent, repeatable results
Lower Oil Usage
with a compact hydraulic circuit reducing heat generation and environmental impact
Fast Cycle Times
for improved throughput and shorter production cycles
Minimal Noise &
Vibration
enhancing operator comfort and working conditions
Reduced Maintenance
Downtime
due to a simplified system with fewer components
Common
Accessories
Weldor’s modular accessories enhance precision, safety, and speed—customized for your
material, geometry, and workflow. Upgrade only what you need, exactly how you need it.
CONTROLLER
OPTIONS
Weldor offers a versatile range of advanced CNC controller options to suit every level of complexity and operator preference.
CROWNING
SYSTEMS
For Press Brakes up to 100 Ton capacity and 4000 mm bending length, Slip-Type Passive Crowning offers a simple and effective natural compensation method.
BACKGAUGE
AXIS OPTIONS
The high-precision backgauge combines speed and accuracy with AC servo drives and KK guides for rapid positioning.
TOOL HOLDING
SYSTEMS
Automatic hydraulic tool alignment – upper and lower holders are hydraulically activated to align tools automatically
SAFETY
SYSTEMS
Safety interlocks in rear door and side guards provides simple operation without the need for programming by the machine operator.
Optional
Accessories
TECHNICAL SPECIFICATIONS
The S Series is available in a wide range of tonnages, bed lengths, and axis configurations to meet diverse production
needs. From stroke length and throat depth to backgauge travel and motor capacity, every specification is engineered
for optimal precision, structural rigidity, and long-term reliability.
| Model | PS | 5020 | 8025 | 1003 | 1303 | 1603 | 2003 |
|---|---|---|---|---|---|---|---|
| Tonnage | Ton | 50 | 80 | 100 | 130 | 160 | 200 |
| Working Length | mm | 2050 x 3 | 2500 x 4 | 3100 x 4 | 3100 x 5 | 3100 x 6 | 3100 x 8 |
| Distance Between Housing | mm | 1550 | 2050 | 2550 | 2550 | 2550 | 2550 |
| Stroke | mm | 250 | 250 | 250 | 250 | 250 | 250 |
| Daylight | mm | 520 | 520 | 520 | 520 | 520 | 520 |
| Throat | mm | 400 | 400 | 400 | 400 | 400 | 400 |
| Table Width | mm | 60 | 60 | 60 | 90 | 90 | 90 |
| Table Height | mm | 850 | 900 | 950 | 965 | 965 | 965 |
| Approach Speed | mm/s | 200 | 200 | 200 | 200 | 170 | 160 |
| Pressing Speed | mm/s | 14 | 14 | 14 | 14 | 12 | 10 |
| Return Speed | mm/s | 170 | 170 | 170 | 170 | 130 | 120 |
| Power Consumption | kw/hp | 7.5 / 10 | 15 / 20 | 15 / 20 | 20 / 25 | 22 / 30 | 30 / 40 |
| Back Gauge Finger Block | nos. | 2 | 2 | 2 | 2 | 2 | 2 |
| X-Axis Travel | mm/s | 500 | 600 | 600 | 600 | 600 | 600 |
| R-Axis Travel | mm/s | 100 | 100 | 100 | 120 | 120 | 120 |
| Oil Tank | ltr. | 320 | 420 | 420 | 420 | 420 | 420 |
| Length | mm | 2950 | 3400 | 3850 | 3900 | 3900 | 4000 |
| Width | mm | 1650 | 1750 | 1750 | 1800 | 1800 | 1850 |
| Height | mm | 2750 | 2850 | 2850 | 2900 | 2950 | 3050 |
