Common Accessories
Enhance Your Press
Brake Performance
Customize for
- Precision
- Performance
- Productivity
Introduction
Enhance Your Press Brake
with
Smart Accessories
Controller Options
Smart CNC Controls
for Every Operator
Weldor offers a versatile range of advanced CNC controller options to suit every level of complexity and operator preference. From intuitive touch interfaces to multi-axis control systems, these controllers streamline operations, reduce setup time, and enhance bending accuracy. Whether you’re working with simple parts or intricate profiles, there’s a controller perfectly tailored to your production needs — ensuring efficiency, ease of use, and long-term reliability.
- CYBTOUCH 8PS
- CYBTOUCH 12PS
- CYBTOUCH 15PS
- VISITOUCH 19
- VISITOUCH 24 MX
- VISITOUCH DUAL
- ROCK 12+
- ROCK 15+
- ROCK 17+
- ROCK 22+
- ROCK DUAL 22
- ROCK DUAL 27

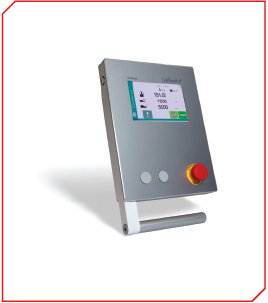

CYBTOUCH 8PS
As part of the CybTouch range, it has an inductive and vivid color touch screen and a high integration of functions. Thanks to its interactive touch software interface with large keys, on-line help, and many other automatic functions that constantly guide the operator, CybTouch 8 is as simple as a positioner control. CybTouch 8 comes with a robust, modern and streamlined housing specially designed to be mounted on an arm.
CYBTOUCH 12PS
- Large touchscreen, with vivid colors & high contrast.
- Hand drawing touch profile function.
- Simple pages, clear display, large keys.
- Intuitive and user-friendly interface.
- Complete programming for efficient work with multiple bends.
- 4 Axis control (Y1–X–R).
- Touch profile 2D graphic part creation with automatic sequencing.

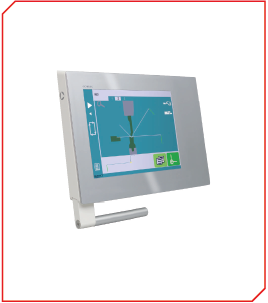

CYBTOUCH 15PS
15” modern streamlined glass surface touchscreen usable with gloves. 4 or 6 axis control in a compact housing. Z1, Z2 axis (Requires CybMVA module for Y1, Y2). Tandem management. Wide storage capacity. Internal backup and restore functions. Wireless communication for extended diagnostics and updates (with laptop).

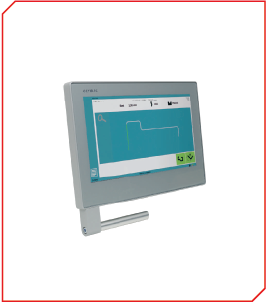

VISITOUCH 19
19” modern streamlined glass surface touchscreen usable with gloves. User-friendly HMI with intuitive programming. 2D graphical profile drawing (Touch Profile) and MX Viewer (3D). Automatic bending sequence calculation. All kinematics available. For X, relatives, Xslave, R, Rslave & Z axis. For back & front multiple gauges. For bending aids.

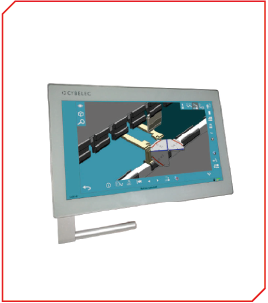

VISITOUCH 24MX
Large 24” all-glass touchscreen (glove-friendly) with integrated CNC board. Full 3D bending simulation with DXF and 3D file import/export. Controls up to 26 axes via CANopen® and EtherCAT® protocols. Smart automation tools: automatic bend sequencing, tooling, gauging & segmentation. Industry 4.0 ready with Windows 10, remote networking, barcode support & robot communication. Advanced features: tandem operations, hemming, angle measurement, dynamic crowning & part grouping. OEM-friendly with auto-tuning wizards, plug-ins, and open customization architecture.

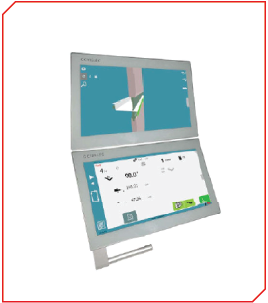

VISITOUCH DUAL
Dual-screen setup with primary VisiTouch interface and secondary display for drawings or documents. Enhanced productivity with parallel work and reference display. Reduced errors through real-time technical data visibility. Streamlined workflow without switching tabs or printed documents. Compact and cohesive integrated hardware design. Mounting ready with required cabling and optional dual screen parts.
ROCK 12+
Wide-screen capacitive touchscreen interface with intuitive navigation. Available in Easy and 3D Profile levels. Supports 4 to 6 axis control with real-time monitoring. Compatible with conventional and hybrid press brakes. Industry 4.0 ready with TeamViewer remote assistance. Linux-based operating system for high stability.

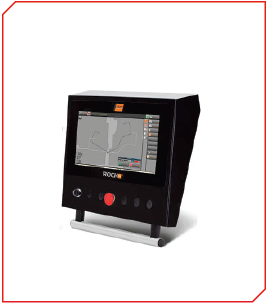

ROCK 15+
15.6” wide-screen capacitive touch panel with intuitive interface. Standard 3D and 3D Profile programming with collision detection. Controls up to 8 axes for advanced press brakes. Quick Editor, tool navigator and oscilloscope diagnostics. Industry 4.0 ready with smart production tools and remote access.

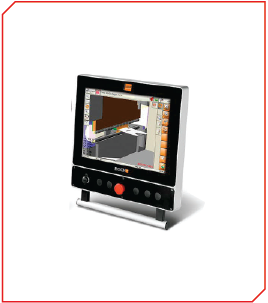

ROCK 17+
Advanced DXF programming with extended axis support. High-performance 3D simulation and collision control. Smart tooling management and flat pattern export. Optimized for demanding production environments.

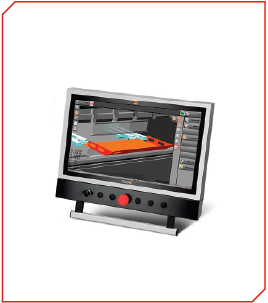

ROCK 22+
Large high-resolution touchscreen for smart factory integration. Advanced 3D programming with automated sequencing. Cloud connectivity, diagnostics and production monitoring. Designed for high-speed, high-precision press brake operations.
ROCK DUAL 22
Dual-screen CNC interface for parallel programming and monitoring. Standard 3D programming with optional advanced simulation. Optimized workflow for complex bending operations.
ROCK DUAL 27
Large 27” dual-display CNC control. Extended workspace UI for advanced programming. Ideal for heavy-duty and high-precision bending applications.
Amada Promecam
European Style
Standard Set Of Tooling
Quick, Secure, and
Accurate Tool Clamping
Punches
Standard straight punches. Gooseneck punches (for deeper bends).
Dies
Single V-dies. Multi-V dies (optional). Narrow & wide opening dies for varied thicknesses.
Material Compatibility
Suitable for mild steel, stainless steel, aluminum, and other industrial metals.

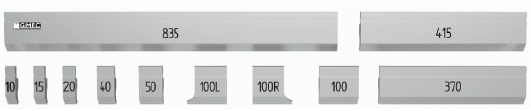

Standard Segments
Standard
Segments
Full Gooseneck Punch (P150
Full Gooseneck
Punch (P120)
Full Gooseneck Punch (P97)
Hemming
Tools
Spring Loaded
Hemming Die
4V Die (60x60)
4V Die (90x90)
2V Die (V8,12)
2V Die (V16,25)
Single V Die
L Base
T Rail
Built accessories that
ENHANCE performance.

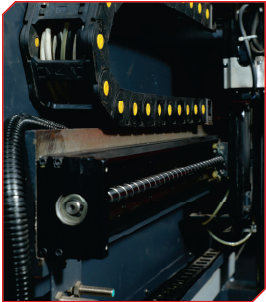

Backgauge Axis
Flexible Positioning
for Complex Jobs
The high-precision backgauge combines speed and accuracy with AC servo drives and KK guides for rapid positioning. Its low-profile design and fine-tuning feature
ensure reliable support and perfect alignment for complex jobs.
Backgauge Axis Options for
Custom Bending Needs
Standard Configuration:
Single-axis backgauge (X-axis: front & back movement)
Optional Upgrades for Complex Jobs:
R-axis: Up & down movement of backgauge
Z1, Z2 axes: Lateral movement for independent finger positioning
X1, R1 (slave to X & R): Enable enhanced control and flexibility
Available Axis Configurations:
- 2-axis: X, R
- 4-axis: X, R, Z1, Z2
- 5-axis: X, X\, R, Z1, Z2
- 6-axis: X1, X2, R1, R2, Z1, Z2 (on request)
High-Precision Backgauge
Designed for Accuracy & Speed
High Accuracy Design
Specially engineered for precise and stable gauging in demanding applications
Precision Control:
All axes driven by AC servo motors for perfect, repeatable positioning
Efficient Performance:
Combines payload capacity with positioning accuracy for consistent resultsHigh-Speed
Operator-Friendly Design:
Low-profile backgauge allows parts to rest over the finger slot for better support and alignment
Movement:
KK guide system on all axes enables fast finger positioning – as fast as the operator can move the part
Fine Adjustment Knob:
Manual 0.1 mm fine-tuning knob enables micro-adjustments for critical setups
Crowing System
Achieve Perfect
Bends Every Time

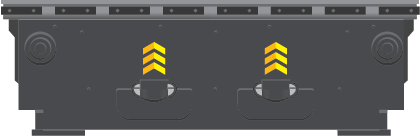

NATURAL PASSIVE CROWNING
UP TO 100 TON
This system is a form of natural crowning, achieved by incorporating precision slits in the lower beam. These slits allow controlled and uniform flexing of the bed during bending, naturally counteracting the ram deflection without the need for active crowning systems
Key Benefits
Ideal For Machines
up To 100 Ton
& 4000mm
Length.
Maintenance Free
No Moving Parts
or adjustments
required
Provides Consistent bend angles across the full length
Cost-Effective in a long-run and reliable for standard bending applications.

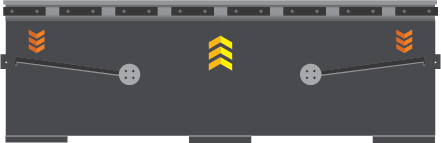

THREE BEAM DESIGN FOR
RIGIDITY AND LOAD BALANCE
- Top Beam (Ram)
- Bottom Beam (Bed)
- Intermediate Crowning Beam (Floating beam)
- Consistent angle accuracy across the full length of the job
- Consistent angle accuracy across the full length of the job
- Less manual correction and no shimming required by the operator
Twin Roll Pins At Ends For
Robust And Uniform Support
Offer precise guided
movement of the
crowning beam
Ensure uniform pressure
distribution across
the die length
Prevent lateral shifting or misalignment of the beam during heavy load bending
Punch Holders
Holding for
Everyday Operations
Standard Punch Holders
- Standard quick release punch holders ensure faster tool set-up.
- Long life due to bolting mechanism.
- Heavy in design - can withstand higher loads by holding maximum metal from the ram.
- Rotation of lever locks punch into place no need for wrench.
Optional Punch Holders
- Automatic hydraulic tool alignment - upper and lower holders are hydraulically activated to align tools automatically (without bolts)
- Drop prevention system - safety wedges make tool changes safer and faster and protects tools from damage caused by dropping.
- Reduced set-up time - the amada type modular tooling system is engineered to reduce set-up time by 50%
Optional Accessories
Holding for
Everyday Operations
Operator’s Safety
Safety interlocks in rear door and side guards provides simple
operation without the need for programming by the machine operator.
Fiessler laser hand safety device from Germany protects user’s hand
while bending to avoid any fatal injuries – creating overall safety for the
company and less rejections in jobs.
Automatic Sheet Followers
To enhance performance while improving operator safety, premium
seres press erakes can be equipped with and automated work follower system.
Heavy sheets/plates can be loaded in throughout lenght in order to
decrease human errors and help save labour & time while achieving
efficiency in work

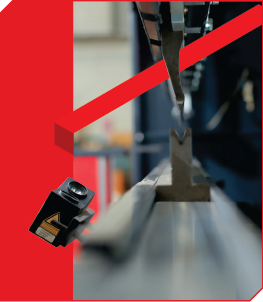

Laser Angle Correction
The CNC system then corrects the angle by inching the ram. therefore, enabling the user to achieve perfect 90° or any set angle in the first bend.
Real-Time Monitoring
Dual laser beams continuously measure the bending angle during production.
Instant CNC Feedback
Data from strain gauges is sent directly to the CNC system, enabling live adjustments.
Perfect First-Bend Accuracy
Perfect First-Bend Accuracy
